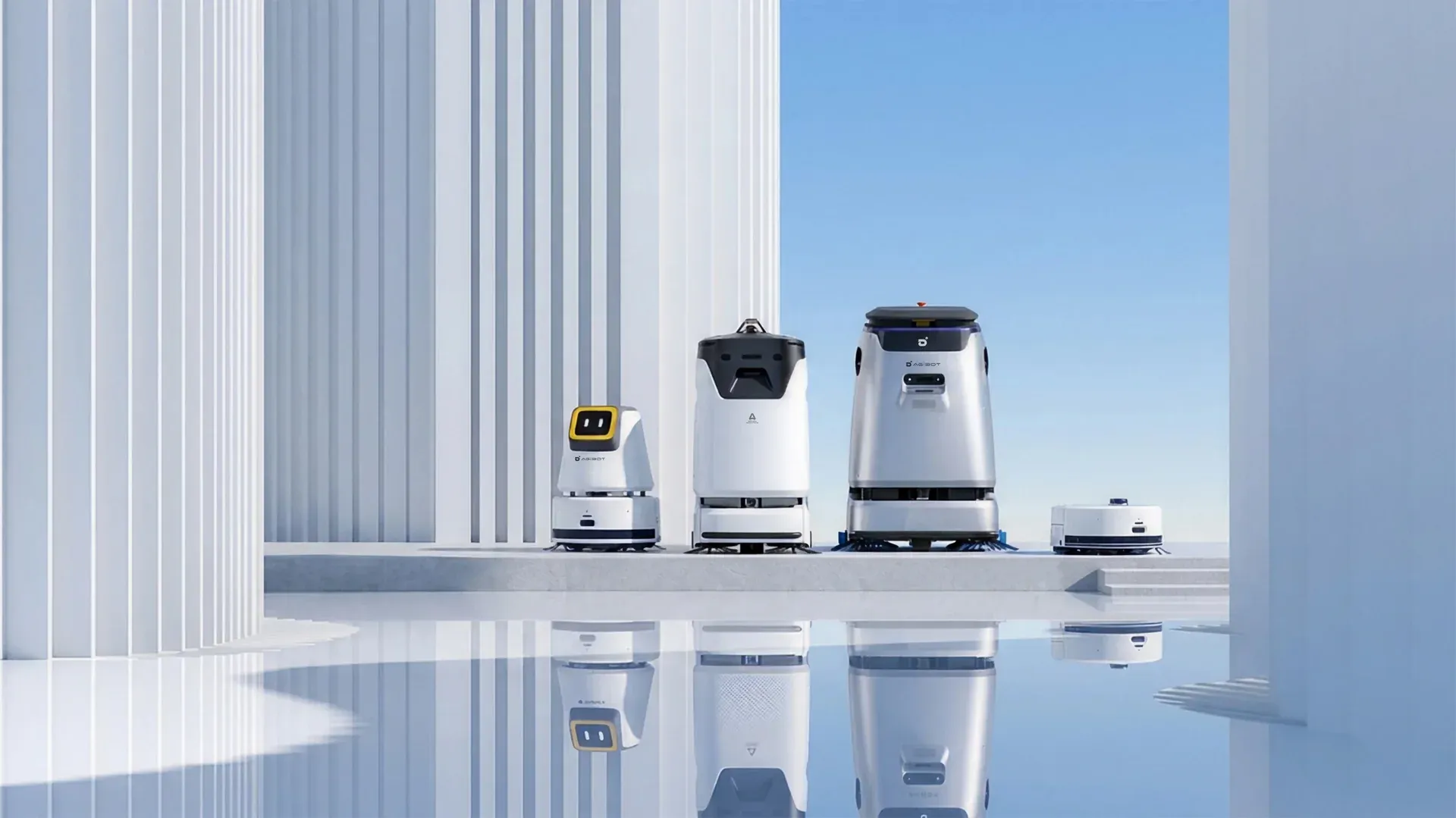

Repetitive floor cleaning,
handled by robots

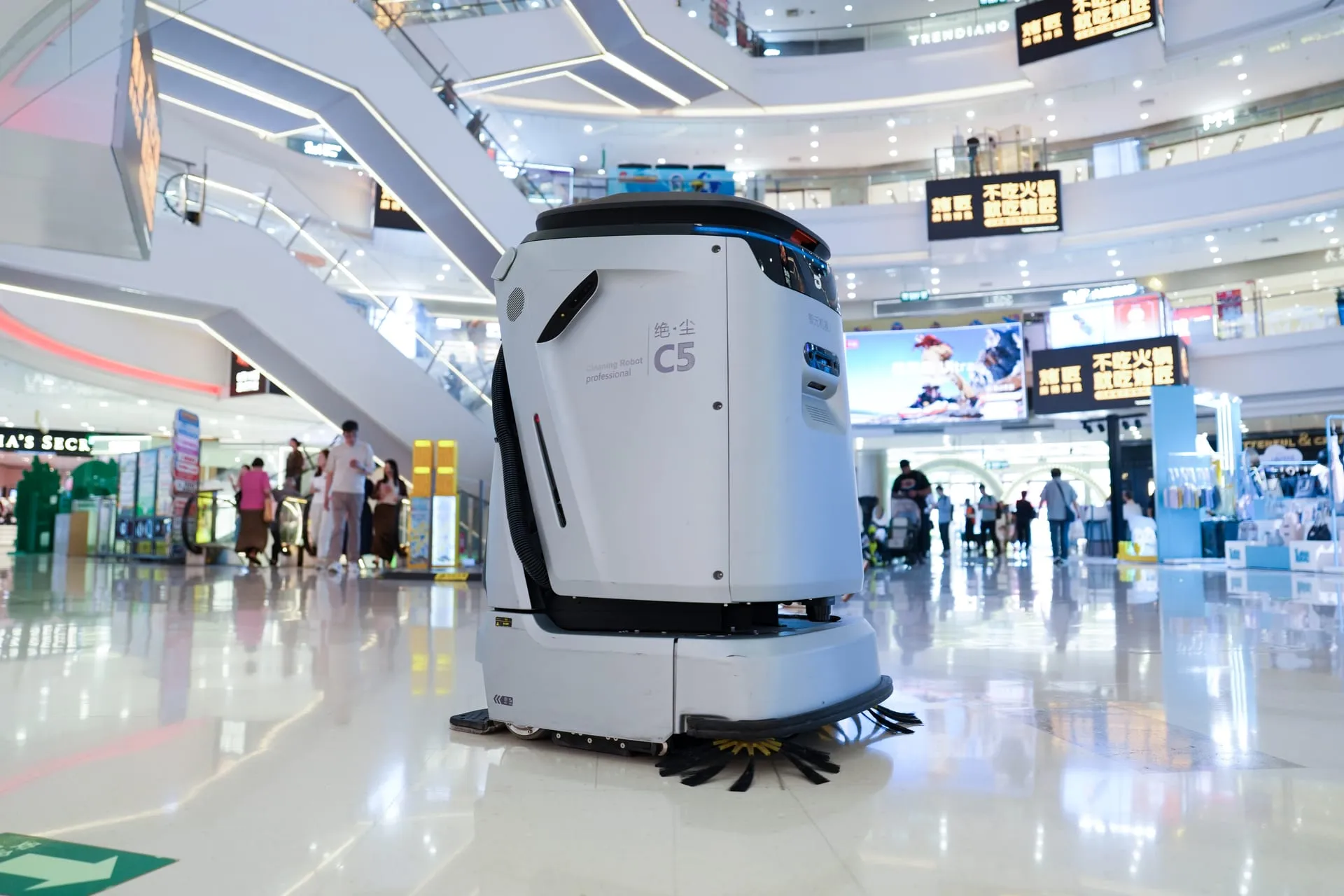

C5 One pass, sweep and scrub

Water, down pressure and a wide deck for large floors.

View model

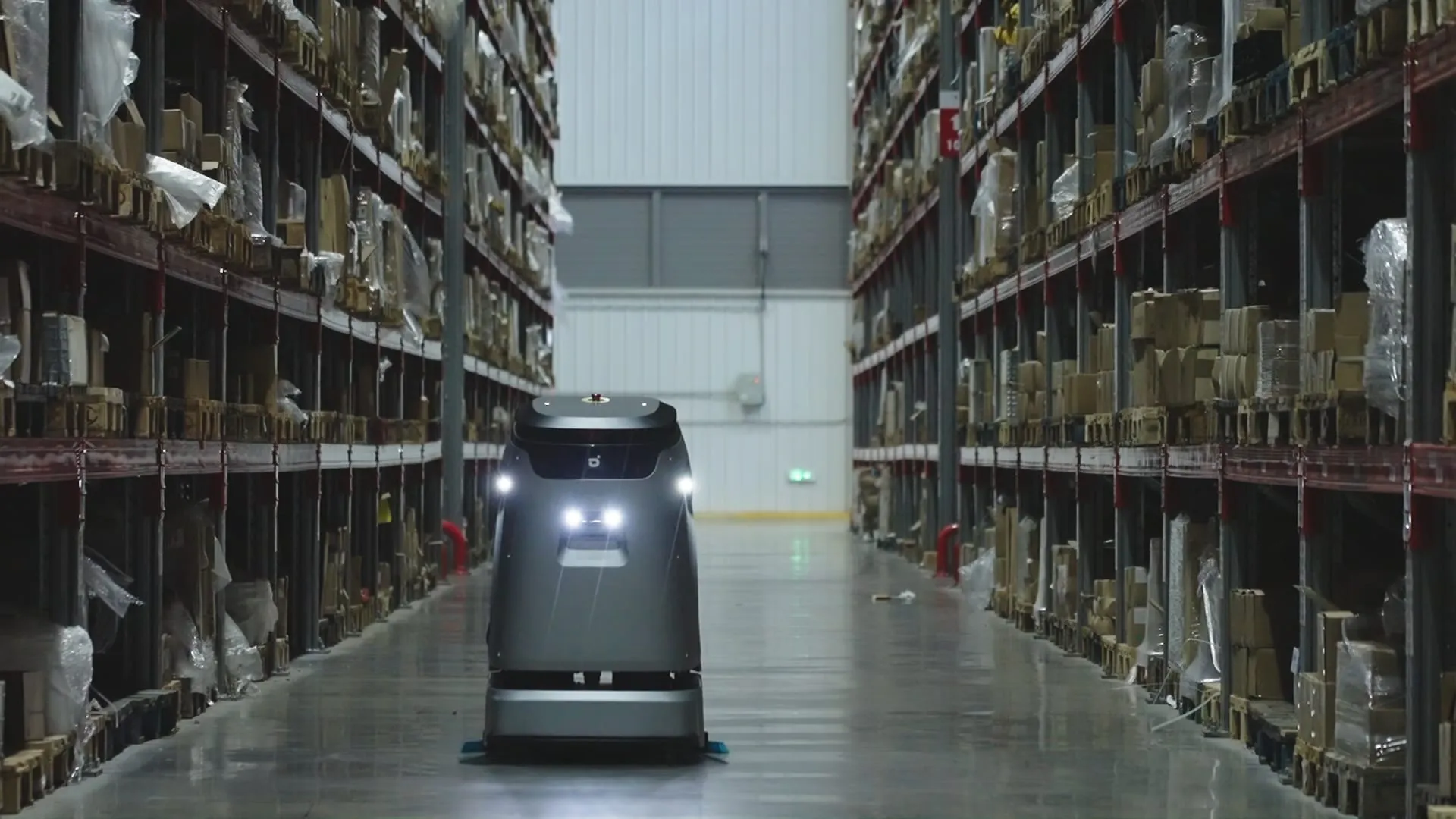

C4 Turns inside the aisle

A compact body that keeps working between shelving and displays.

View model

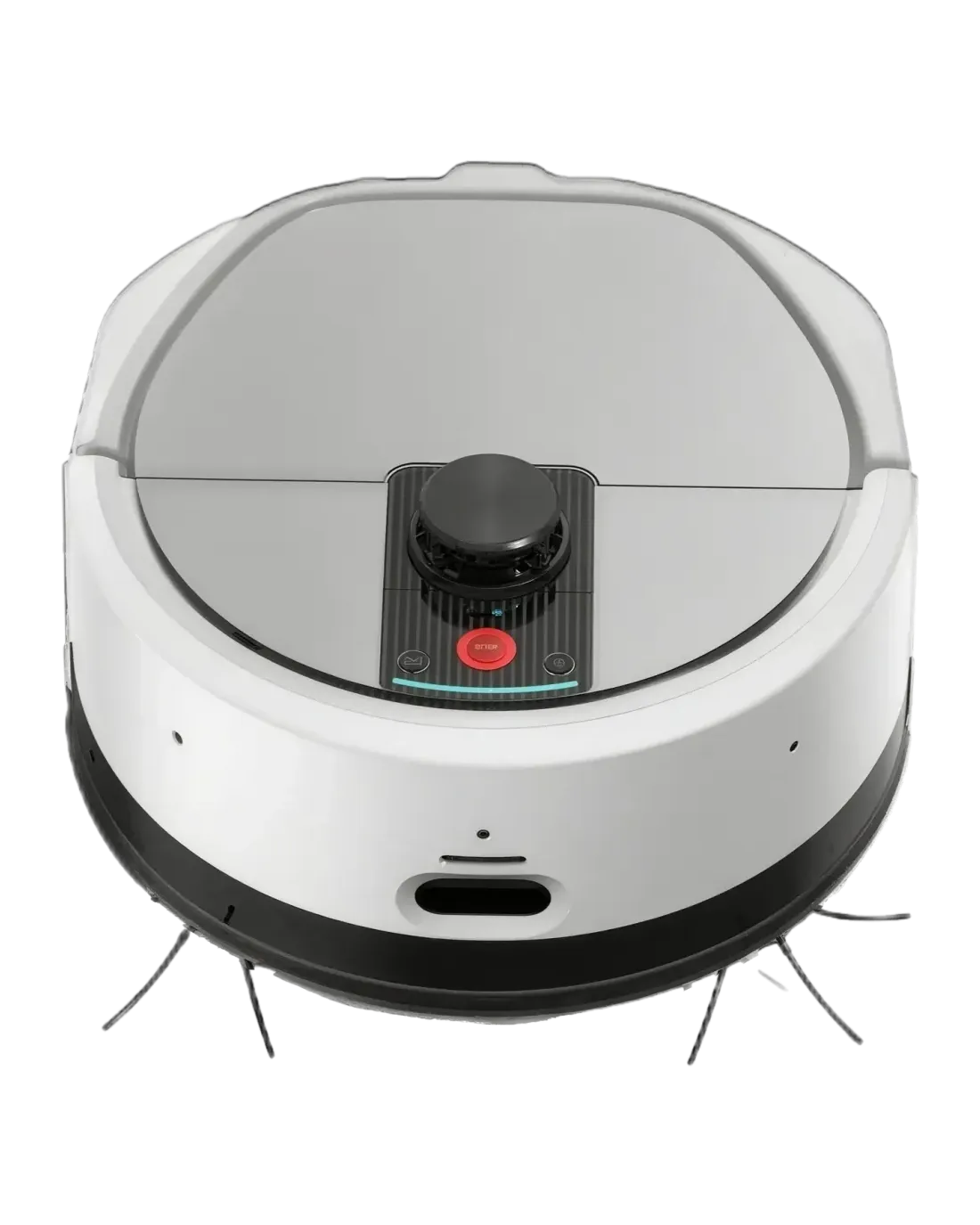

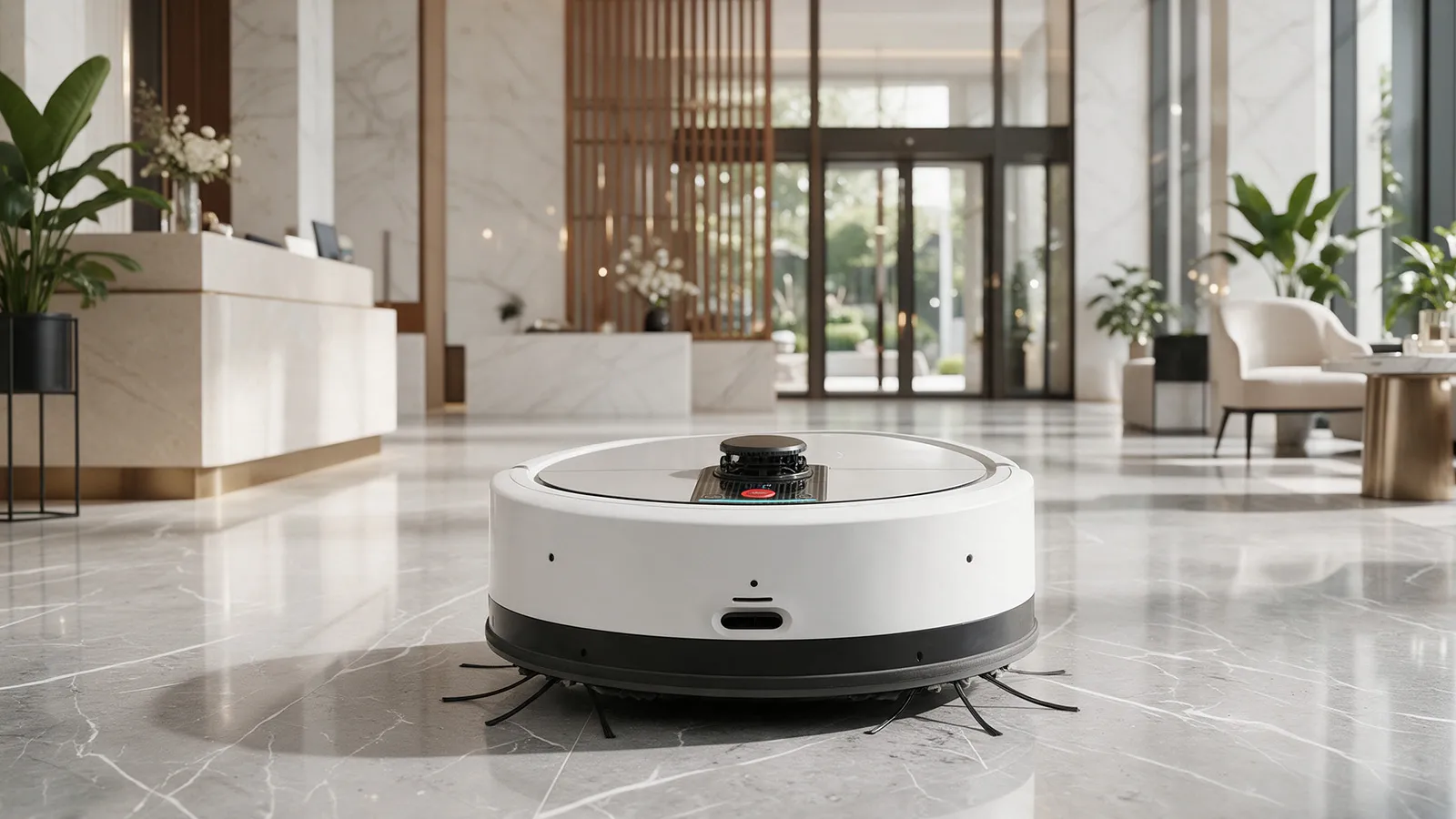

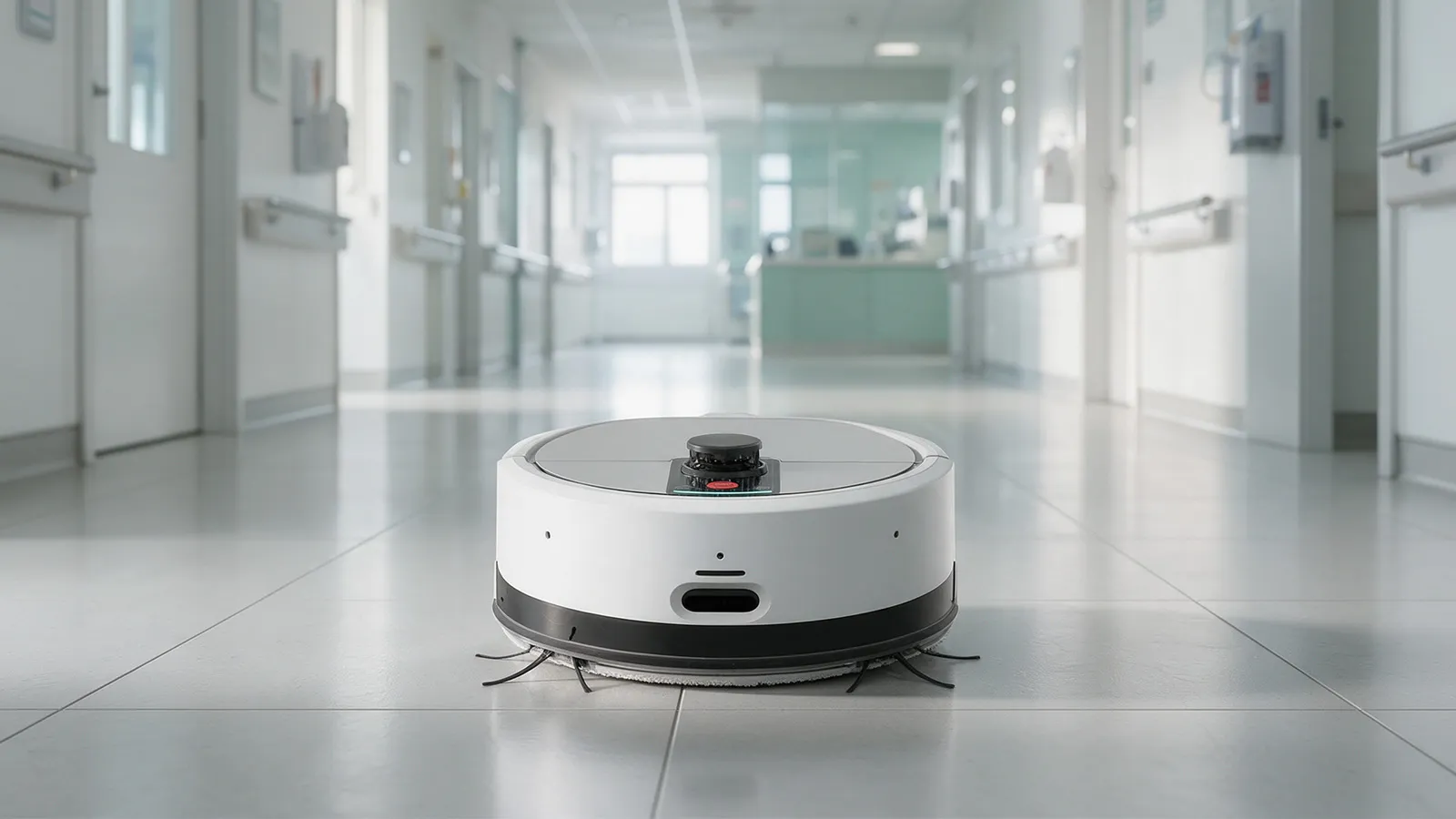

C2 Cleans under the furniture

A slim body that reaches under desks, tables and shelving.

View model

What buyers ask first

Will it cut the night shift? Does it fit this floor? Can I prove what was cleaned?

01

Night shift, less walking

The robot runs the mapped route and handles its own charging and water. The crew spends its time on edges, spills and exceptions.

02

Fits the floor

Marble, tile, epoxy, PVC, carpet. The model and cleaning mode follow the surface and the aisle width.

03

Records you can check

Task progress, covered area, machine status and exceptions sit in one console. Before the morning meeting you can see which zones were missed and which machine needs a consumable.

The line

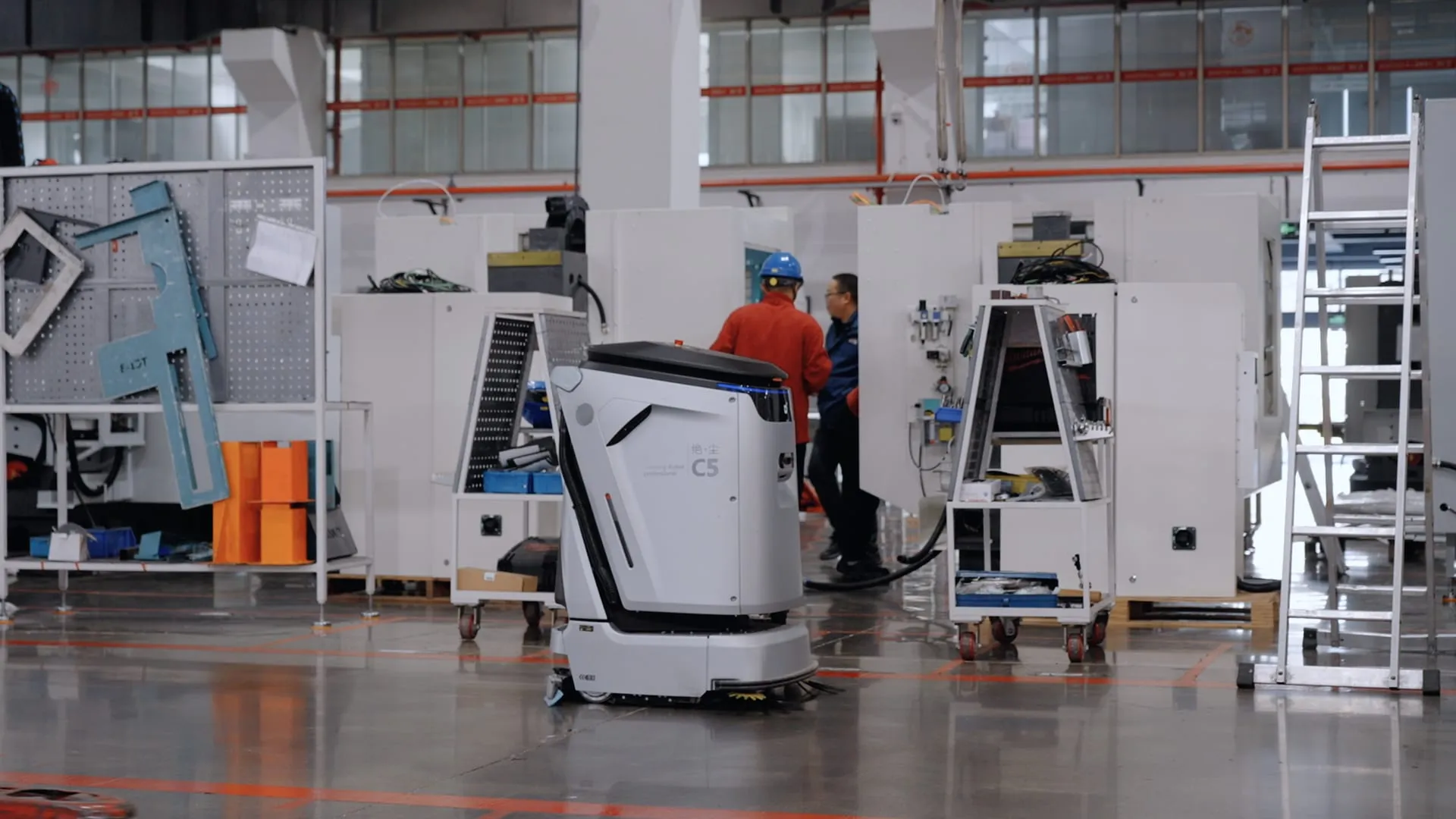

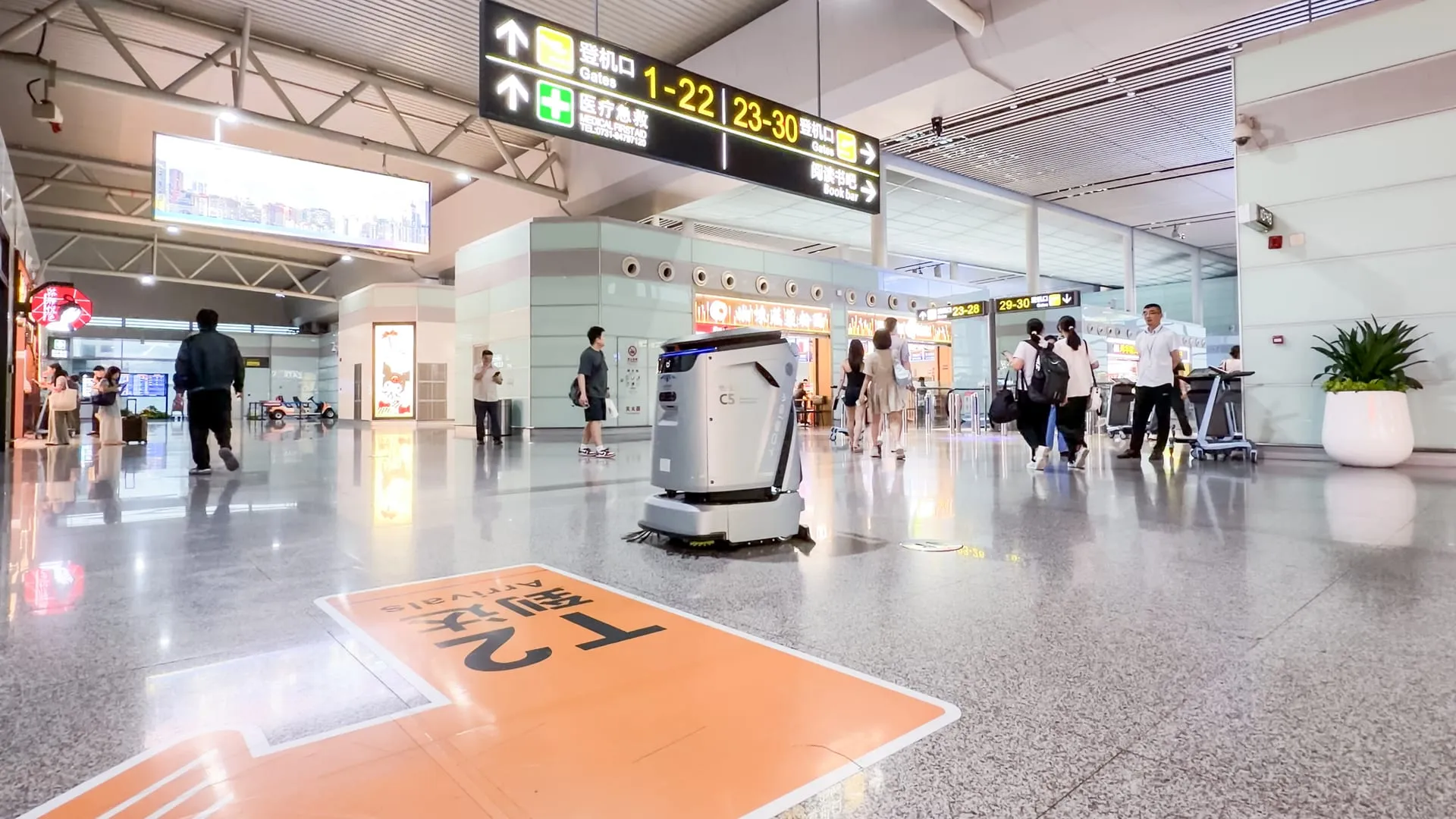

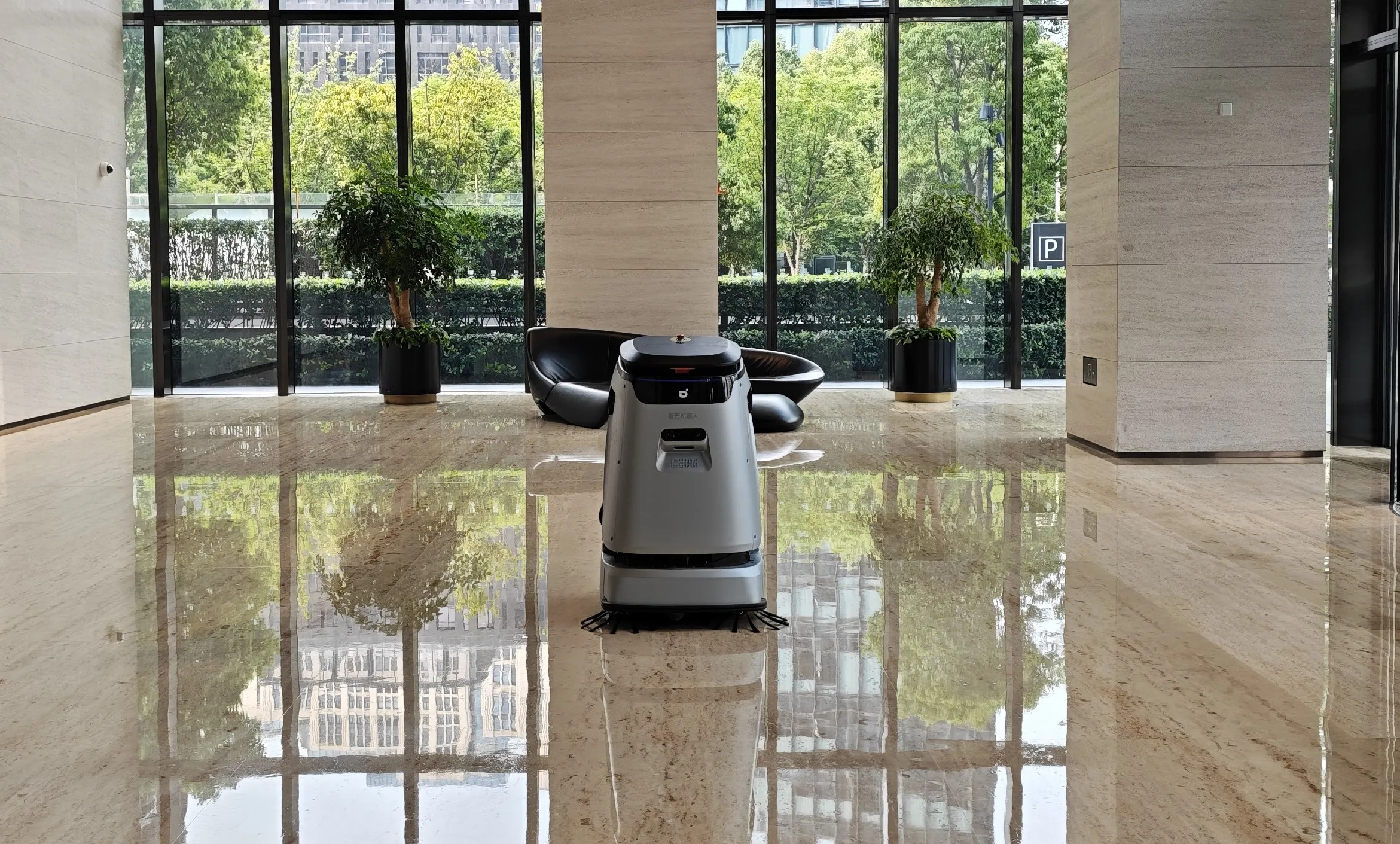

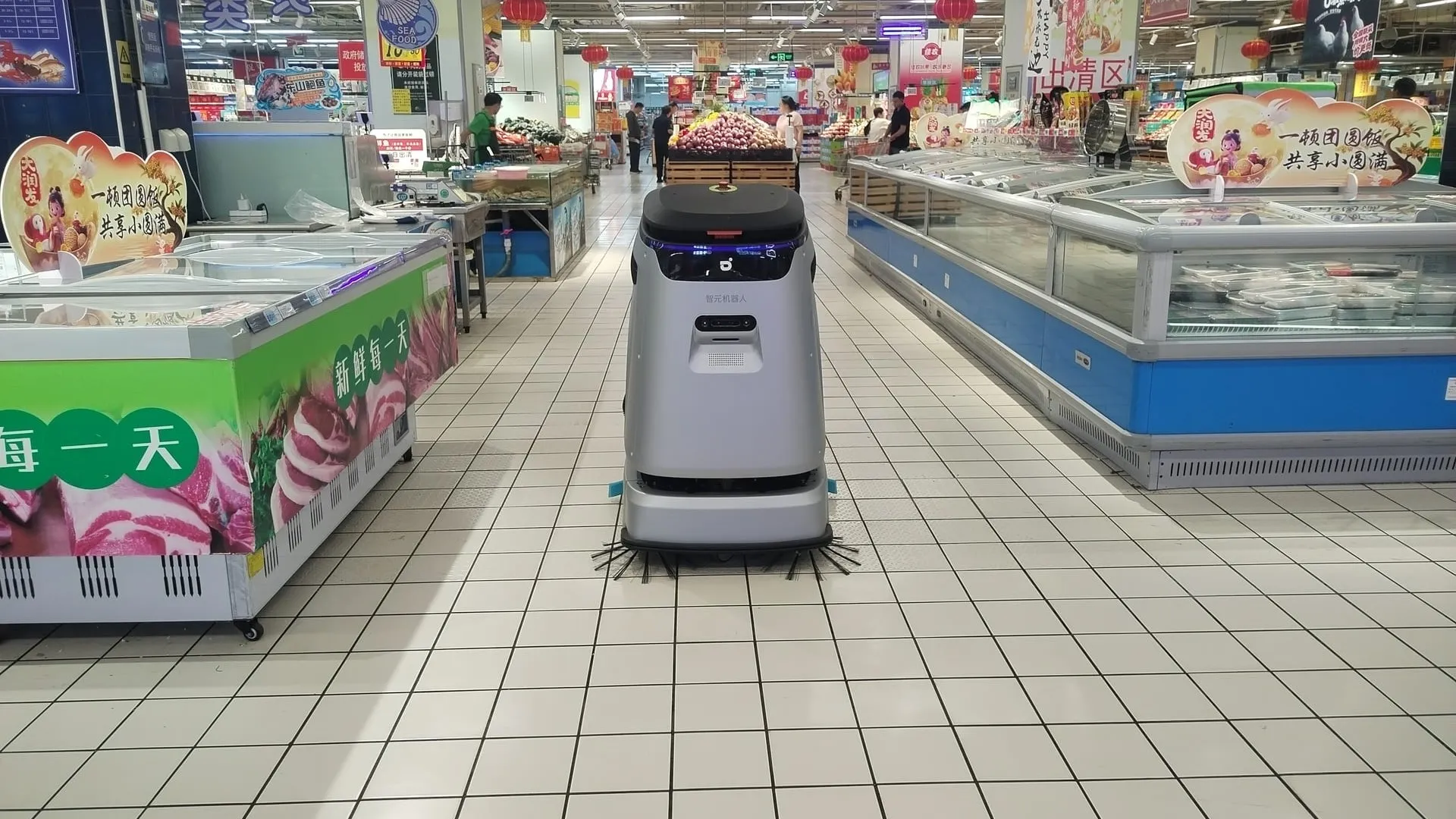

Solutions by industry

Start with the site. Each industry page shows the problems, the zone plan and the before/after comparison.

Industrial engineering, applied to commercial cleaning

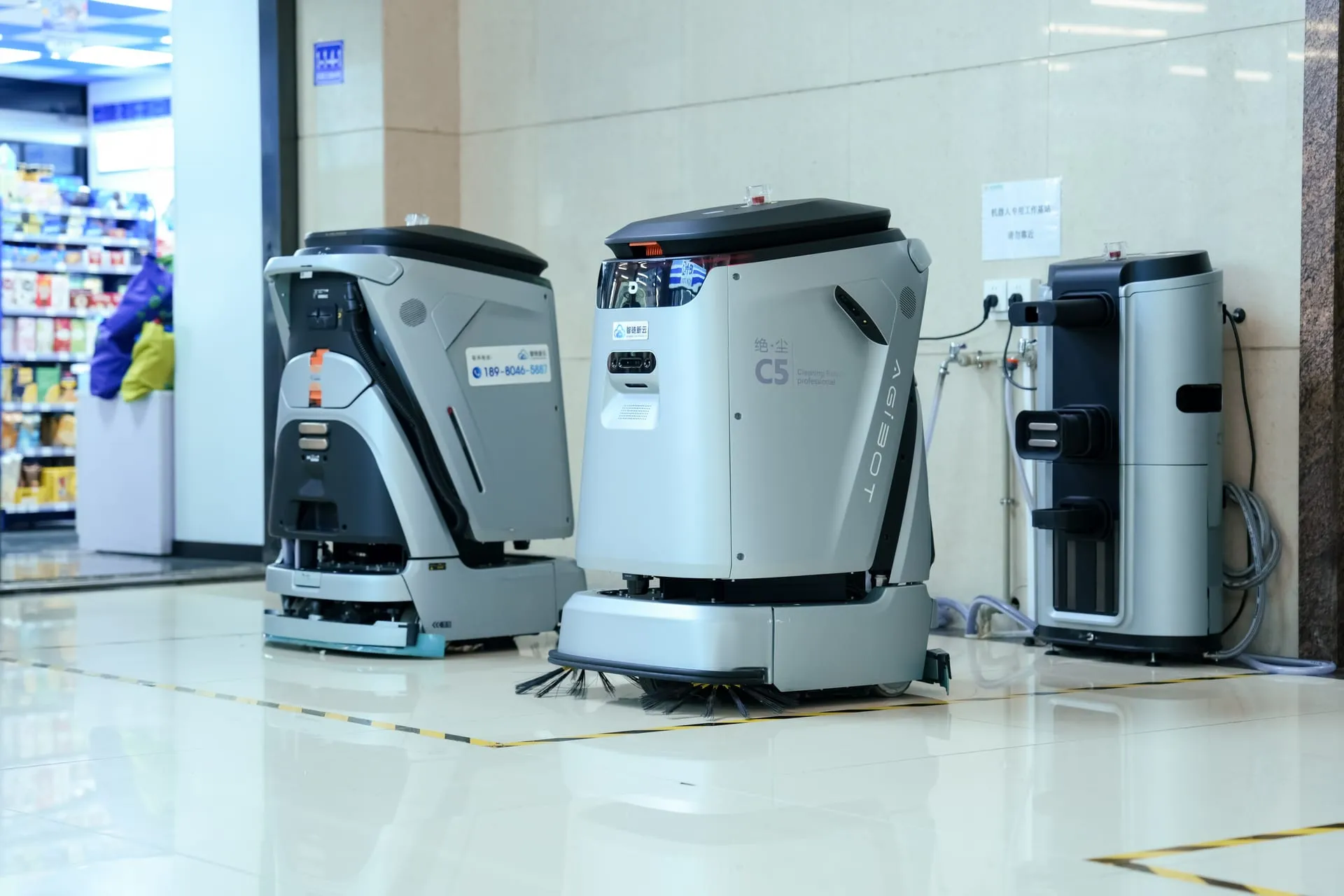

Returning to the docking station
  • 48Patents filed
  • 37Invention patents
  • 30+Countries served
  • 5Overseas service centres

BRAWN ROBOTICS is the commercial cleaning brand of AGIBOT Innovation (Shanghai). Robots, docking stations and the cloud platform are developed and built in one house, which is what makes the line compound: 48 patents, 37 of them invention patents, CE / FCC / cTUVus / KC / RCM on the machines, and service reach across more than 30 countries.

More about BRAWN

Four layers, one system

Four layers decide how a robot performs on site: perception and decision on board, the digital twin in the cloud, the docking station, and building-system integration. All four are developed in house.

  1. 01

    Perception and decision

    C5 uses a 2D LiDAR, four RGBD sensors and a fisheye camera; C2P adds line-laser and ultrasonic sensing for low or transparent obstacles. Recognition and local replanning run on board, so a blocked aisle becomes a detour rather than a stop.

  2. 02

    Digital twin and cloud

    Tasks, zones, coverage, exceptions and machine health are recorded. Cleaning performance becomes something you can check.

  3. 03

    Docking infrastructure

    The station handles charging, water fill and drain, and roller-brush cleaning. That is what lets a machine work through the night without an operator.

  4. 04

    System integration

    Lift, access control and building-management interfaces are specified per site, so the robot can move through the building.

Delivery and service

A free survey, sizing by area, remote diagnosis before a visit, and spare parts held locally.

Learn more
  • Survey and proposal at no cost
  • Model sizing by area and surface
  • Remote diagnosis before a visit is booked
  • OTA updates where supported

News & events

Questions we hear first

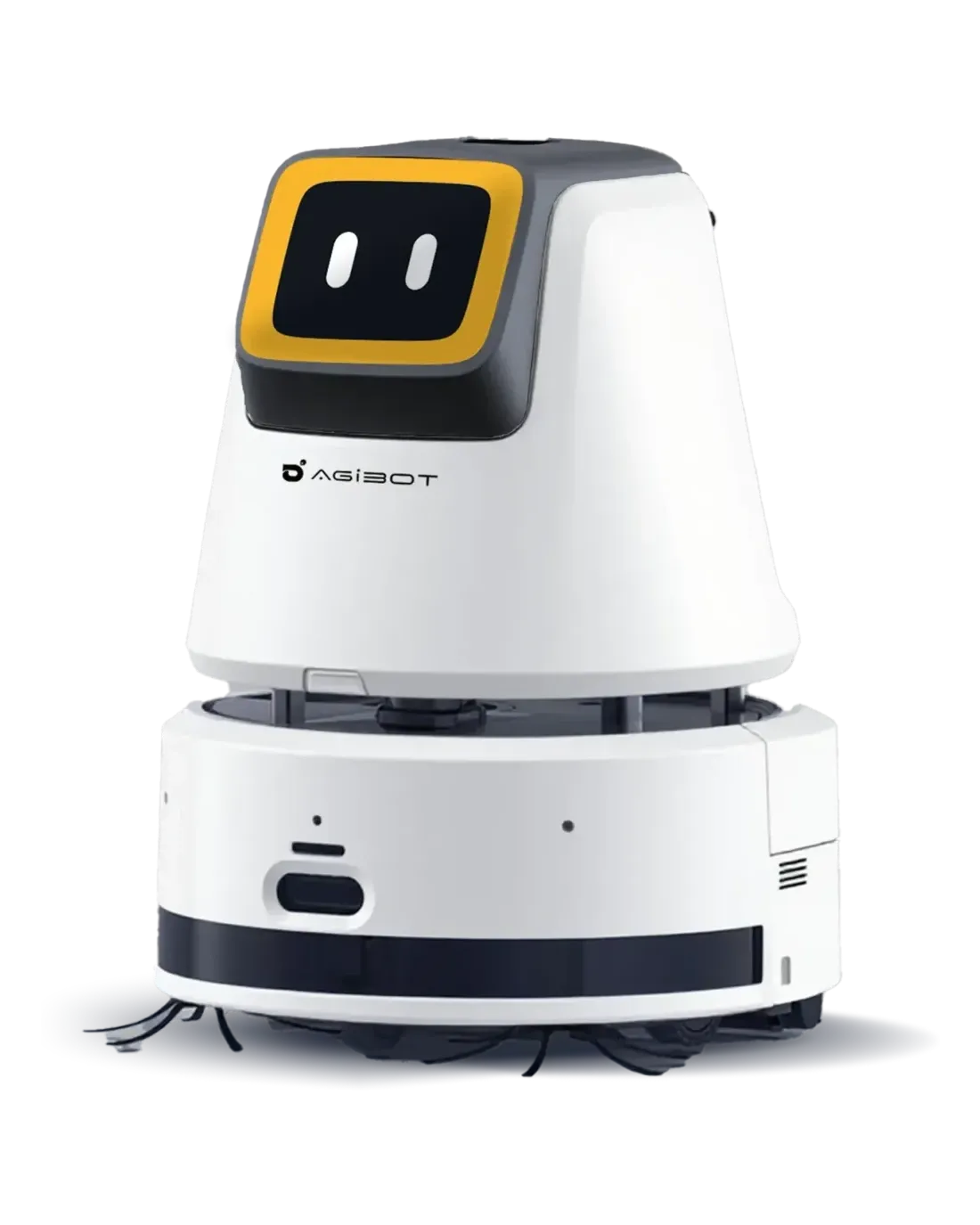

What are the C2P's 370 mm and 510 mm widths?

370 mm is the effective scrubbing width. With both side brushes, sweeping coverage is 510 mm. The body width without side brushes is also 510 mm.

What passage and turning space does C5 need?

One-way passage is 900 mm, a right-angle turn requires 1,200 mm, and the turning radius in scrubbing mode is 1,720 mm. Check all three against the actual route, not only the doorway.

How long does it take to charge the C5, and how much power does it use?

Automatic charging at the station takes about 1.5 h and is rated at 1,800 W. Manual charging is 1,200 W with a 1,500 W peak.

How are the C5's 90 L of water split between clean and wastewater?

The robot has two 45 L tanks: 45 L clean water and 45 L wastewater. The combined 90 L capacity should not be described as 90 L of clean water.

What does the C5 mobile app support?

The iOS/Android app has separate cleaning-staff and delivery/operations roles. Cleaning staff get local settings, task reports and alarms; operations get live location, remote control, map management and data reports. Device and function permissions can be assigned by role.

Are automatic dust collection and mop drying included on the C2P?

Both are optional station functions. The station dustbin holds 10 L and is emptied manually; the robot body dustbin holds 1.1 L. Mop drying can be switched on or off in the platform, and its power, duration and noise are not published.

What utilities and space does the C2P station need?

The station requires a grounded 220 V~/50 Hz socket, water inlet at 0–0.7 MPa with the supplied pressure reducer and filter, a nearby drain and stable Wi-Fi. Leave about 2 × 1.5 m in front for docking and avoid direct sunlight and damp areas.

How do C5 OTA updates work?

OTA is supported. A partner can push updates automatically through the deployment software during idle time, or a person can confirm an update through the cloud platform. The robot must be online with a stable connection. OTA is free, usually every two to three months, subject to the release schedule.

A cleaning plan your building can run

Tell us the venue and floor area. We will come back with a model mix, a zone plan and a time to see the machine run.
